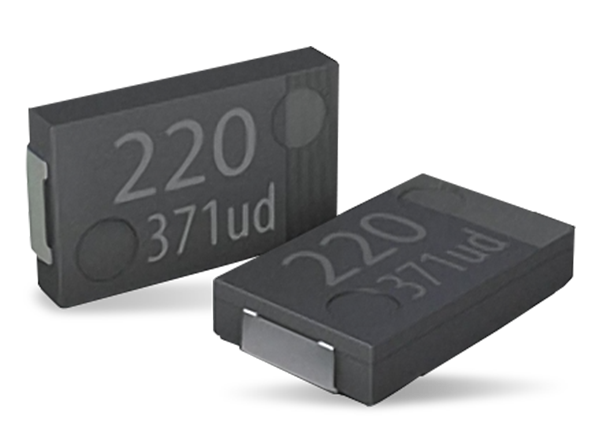

Panasonic Electronic Components Condensateurs polymère-aluminium SP-Cap

Le condensateur polymère-aluminium organique Panasonic Electronic Components SP-Cap est un condensateur électrolytique aluminium CMS qui qui utilise un polymère conducteur comme électrolyte au sein d'une construction aluminium en couches. La gamme de produits SP-Cap de Panasonic est composée de plusieurs séries qui offrent une gamme de capacités pouvant atteindre 560 µF, une gamme de tensions allant de 2 à 16 V et le plus faible rapport ESR/impédance du marché, fournissant ainsi une suppression du bruit et une réponse transitoire excellentes. Contrairement aux MLCC, les SP-Cap ne présentent pas de dérive thermique et de polarisation CC-CA. En outre, la rupture de tension n'est pas nécessaire avec les SP-Cap, comme dans les condensateurs au tantale, en raison de leurs caractéristiques de sécurité. Les SP-Cap représentent la solution idéale en matière de condensateurs d'entrée et de sortie pour divers convertisseurs CC-CC.

Panasonic has expanded the CS, CT, and CX SP-Cap series to include higher voltage capacitance with a range of up to 35V. The additions to the SP-Cap product line feature high voltage, low profile, high-temperature reflow, and unique electrode materials for high withstanding voltages. The higher voltage SP-Caps are used with DC/DC converters, output signal stabilization, and filtering.

Applications

Laptops and desktop computers
Servers
Audio/visual

Communications infrastructures
Industrial equipment
Drones

Product Overview

Overview

Graphique - Panasonic Electronic Components Condensateurs polymère-aluminium SP-Cap

Structure

Infographie - Panasonic Electronic Components Condensateurs polymère-aluminium SP-Cap

Application Examples

Additional Resources

High Reliability

EEF-JX Series - High-temperature, SMT long-life aluminum electrolytic capacitors designed for 3000 hours of performance at +125°C with a -55°C to +125°C temperature range, a 2V to 6.3V rated voltage range, and a 1.6V to 5V category voltage range. Datasheet

EEF-JZ Series - 2V rated voltage, ±20% capacitance tolerance, -55°C to +125°C temperature range, low ESR, a product height of 2.3mm, a ripple current range of 6300mA_RMS to 10,200mA_RMS, and a long life of 3000 hours at +125°C.

EEF-KX Series - High-temperature, long-life caps featuring a 330µF to 470µF capacitance range, a voltage range of 2V to 2.5V, and a maximum ESR of 9mΩ. Datasheet

EEF-KZ Series - Wide temperature range of -55°C to +125°C, an ESR range of 3mΩ to 9mΩ, and a capacitance tolerance rating of ±20%. Datasheet

EEF-TX Series - Wide temperature range of -55°C to +135°C, an ESR range of 3mΩ to 15mΩ, and 5500 hours of endurance at +135°C. Datasheet

EEF-TZ Series - Endurance of 5000 hours at +135°C, an ESR range of 3mΩ to 9mΩ, 2V rated voltage, and an operating temperature range of -55°C to +135°C. Datasheet

Ultra-Low ESR

EEF-GX/GX-L Series - ESR rating of 3mΩ, a capacitance range of 330µF to 560µF, a voltage range of 2V_DC to 2.5V_DC, and RoHS compliant. Datasheet

EEF-GY Series - 3mΩ maximum ESR rating, 820µF capacitance, an operational life of 2000 hours at +105°C, and a high ripple current of 10200mA_RMS. Datasheet

Low ESR

EEF-SX Series - 82µF to 470µF capacitance range, a 2V to 6.3V Voltage Range, and an ESR range of 4.5mΩ to 9mΩ. Datasheet

EEF-ST Series - -55°C to +105°C temperature range, a 2V to 2.5V voltage range, and a 270μF to 330μF nominal capacitance range. Datasheet

EEF-SS Series - -55°C to +105°C temperature range, a 2V to 2.5V voltage range, and a 180μF to 220μF nominal capacitance range. Datasheet

Low ESR/ESL (3x Terminal)

EEF-LX Series - Capacitance range of 330µF to 560µF, a voltage range of 2V_DC to 2.5V_DC, an ESR range of 4.5mΩ to 6mΩ, and an operating temperature range of -55°C to +105°C. Datasheet

EEF-LT Series - 270µF to 330µF capacitance range, a voltage range of 2V to 2.5V, a 6mΩ ESR, and a 1.4mm profile height. Datasheet

EEF-LS Series - Capacitance range of 180µF to 220µF, a 2V to 2.5V voltage range, a 6mΩ ESR, and a 1mm profile height. Datasheet

EEF-LR Series - 2V to 6.3V voltage range, a 68μF to 220μF nominal capacitance range with ±20% tolerance, and a 1mm profile height. Datasheet

Low Profile

EEF-CS Series - Capacitance range of 68µF to 120µF, a voltage range of 4V to 6.3V, a 15mΩ ESR rating, and a profile height of 1mm. Datasheet

EEF-CT Series - 100µF to 180µF capacitance range, a 4V to 6.3V voltage range, a 15mΩ ESR rating, and a profile height of 1.4mm. Datasheet

Standard

EEF-CX Series - 100µF to 470µF capacitance range, a voltage range of 2V_DC to 6.3V_DC, and a maximum ESR of 15mΩ. Datasheet

EEF-HX Series - 33µF to 560µF capacitance range, a voltage range of 2V to 25V, and an ESR range of 4.5mΩ to 40mΩ. Datasheet

ECG-CY Series - Capacitance range of 330µF to 470µF, a 4V to 6.3V voltage range, and an ESR of 15mΩ. Datasheet

ECG-SY Series - Capacitance range of 330µF to 470µF, a 4V to 6.3V voltage range, and an ESR of 9mΩ. Datasheet

High Voltage
