STMicroelectronics TSC101 High Side Current Sense Amplifier

STMicroelectronics TSC101 High Side Current Sense Amplifiers measures a small differential voltage on a high-side shunt resistor and translates it into a ground-referenced output voltage. The gain is internally fixed. Wide input common-mode voltage range, low quiescent current, and tiny SOT-23 packaging enable use in a wide variety of applications. The input common-mode and power supply voltages are independent. The common-mode voltage can range from 2.8V to 30V in operating conditions and up to 60V in absolute maximum rating conditions. The current consumption below 300μA and the wide supply voltage range enable the power supply to be connected to either side of the current measurement shunt with minimal error.

Features

  • Independent supply and input common-mode voltages
  • Wide common-mode operating range: 2.8 to 30V
  • Wide common-mode surviving range: -0.3 to 60V (load-dump)
  • Wide supply voltage range: 4 to 24V
  • Low current consumption: ICC max = 300μA
  • Internally fixed gain: 20V/V, 50V/V or 100V/V
  • Buffered output

Applications

  • Automotive current monitoring
  • Notebook computers
  • DC motor controls
  • Photovoltaic systems
  • Battery chargers
  • Precision current sources

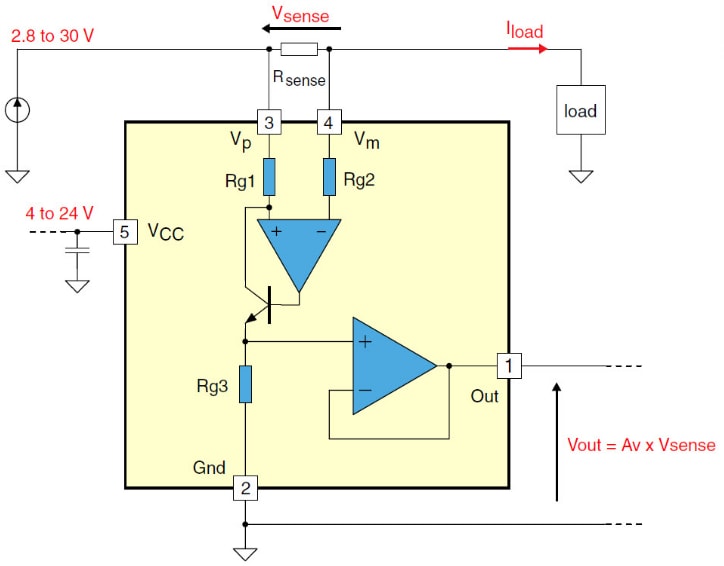

Application Schematic

Application Circuit Diagram - STMicroelectronics TSC101 High Side Current Sense Amplifier
View Results ( 3 ) Page
Numéro de pièce Fiche technique Nombre de canaux TRMC - Taux de réjection du mode commun Ib - Courant de polarisation d’entrée Vos - Tension de décalage d'entrée Courant d'alimentation de fonctionnement Quantité standard du lot Tension d’alimentation - Max. Tension d’alimentation - Min. Gain V/V VB - Vitesse de balayage Qualification Package/Boîte
TSC101AIYLT TSC101AIYLT Fiche technique 1 Channel 90 dB 5.5 uA 900 mV 300 uA 3000 24 V 4 V 20 V/V 0.9 V/us AEC-Q100 SOT-23-5
TSC101CILT TSC101CILT Fiche technique 1 Channel 90 dB 5.5 uA 900 mV 300 uA 3000 24 V 4 V
TSC101BILT TSC101BILT Fiche technique 1 Channel 90 dB 5.5 uA 900 mV 300 uA 3000 24 V 4 V
Publié le: 2010-08-09 | Mis à jour le: 2022-03-11
