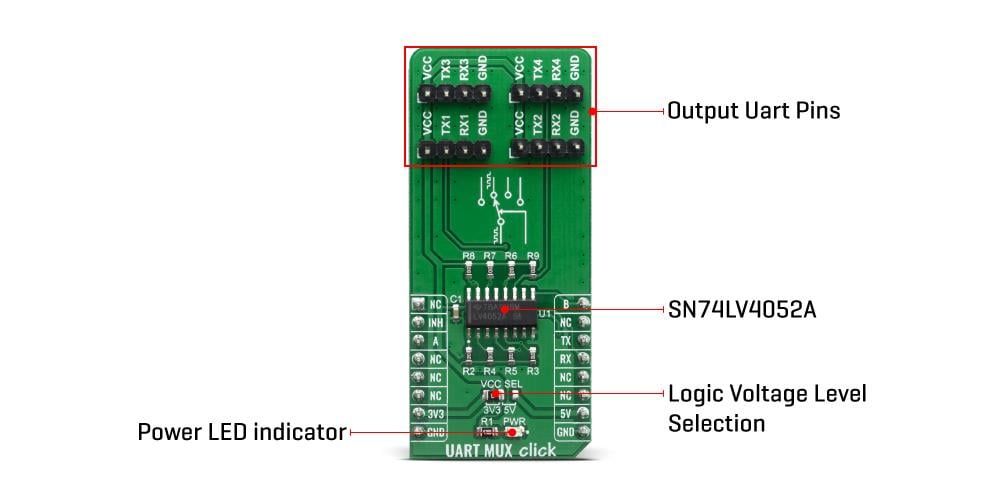

Mikroe UART Mux Click
Mikroe UART Mux Click switches the UART pins (RX and TX) from the mikroBUS™ to one of the four available outputs. The Mikroe UART Mux click uses TI's SN74LV4052A Dual 4-Channel Multiplexer and Demultiplexer. This is designed for 2V to 5.5V VCC operation. Some typical applications for the SN74LV4052A include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing.
Features
- Texas Instruments SN74LV4052A, a Dual 4-Channel Analog Multiplexer and Demultiplexer on-board modules
- High On-Off Output-Voltage Ratio, Extremely Low Input Current, 2-V to 5.5-V VCC Operation
- GPIO, UART interface
- mikroBUS compatibility
- L (57.15mm x 25.4mm) click board size
- 3.3V or 5V input voltage
Applications
- Telecommunications
- Infotainment
- Signal Gating and Isolation
- Home Appliances
- Programmable Logic Circuits
- Modulation and Demodulation
Overview
