Microchip Technology MPF100-QCXP-KIT PolarFire® Quad Channel CXP-12 Kit
Microchip Technology MPF100-QCXP-KIT PolarFire® Quad Channel CXP-12 Kit allows users to connect high-performance, high-resolution cameras (SLVS-EC FMC Card) to high-speed capture cards (CoaXPress Frame Grabbers) through 75Ω coaxial cables. The Microchip MPF100-QCXP-KIT Quad Channel CXP-12 Kit supports four 12.5G CoaXPress PHYs and eight lanes of SLVS-EC interface for fast, high-resolution image sensors. With a 109K Logic Element (LE) PolarFire Field-Programmable Gate Array (FPGA) and an SPI-Flash, the kit is ideal for mid-bandwidth imaging and video applications.
Features
- Up to eight lanes for high-speed raw data transfer SLVS-EC
- Up to 12.5Gbps per channel CoaXPress v2.0
- Up to four CoaXPress v2.0 I/Os for output
- One USB2.0 to UART
- One JTAG interface
- One 400-pin VITA 57.1-compliant FMC connector (LPC interface)
- Four Micro BNC connectors
- Combined high bandwidth, long distance, and low latency
Applications
- Mid-bandwidth
- Imaging
- Video

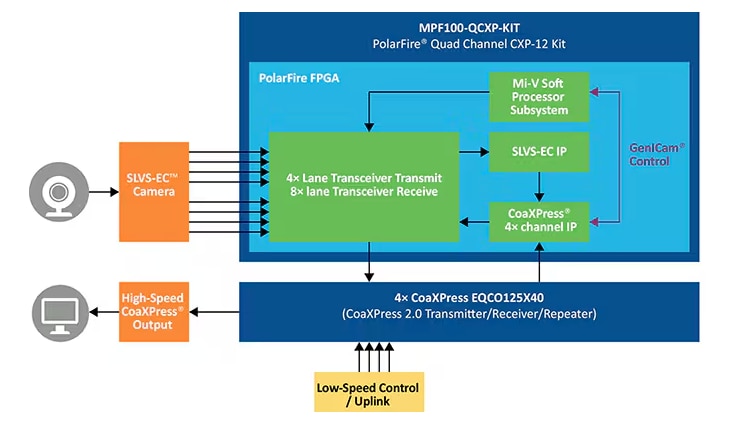

Block Diagram
Product Call-Outs
Application Circuit
