MaxLinear Ethernet Switches
MaxLinear Ethernet Switches are highly integrated solutions that provide the connectivity required for bandwidth-hungry video streaming, gaming, and video conferencing. The 1Gb Ethernet Switches offer Smart LED brightness control integrated for power saving in a small footprint.
The GSW120, GSW140, and GSW141 devices are feature integrated, non-blocking four-port (GSW120) or six-port (GSW140 and GSW141) Gigabit Ethernet QoS switches with two (GSW120) or four (GSW140 and GSW141) Ethernet PHY, one 1G RGMII, one 2.5G SGMII+ (GSW120 and GSW140) or one 1G SGMII (GSW141), and one management port.
The MaxLinear Ethernet Switches are ideal for next-generation routers, switches, and gateways.
Applications
- Home gateways
- Standalone switches plus 2.5G uplink
Associated Products
MaxLinear Ethernet PHY Transceivers
2.5GbE PHY Ethernet transceivers that are suited for routers, switches, and home gateways.
Associated Eval Boards
MaxLinear Ethernet Evaluation Boards
Configured to evaluate the operation of the MaxLinear Ethernet Switches.
MaxLinear GPY21x Evaluation Boards
2.5G PHY boards that are designed to evaluate the GPY211, GPY212, and GPY215 Ethernet transceivers.
Additional Resources

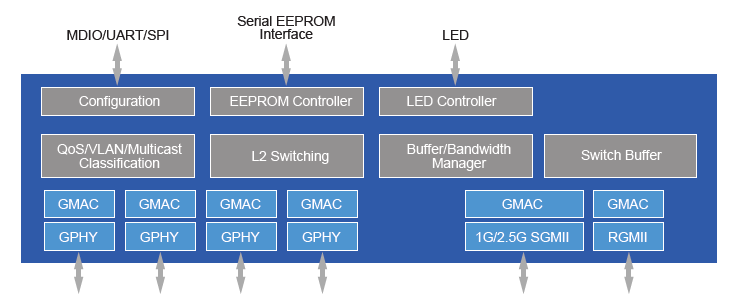

GSW140 Block Diagram

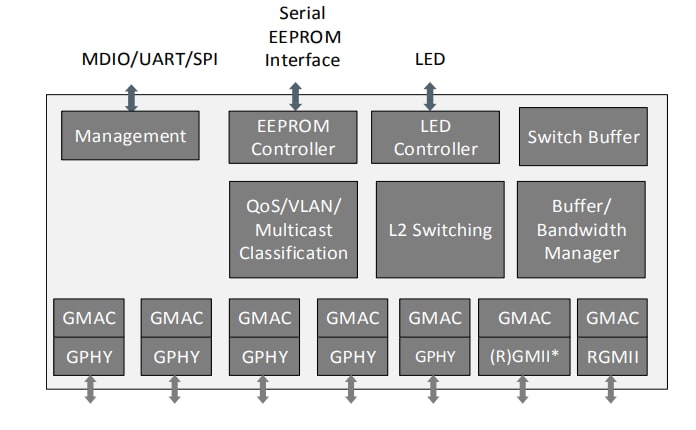

GSW150 Block Diagram
| Numéro de pièce | Fiche technique | Description |
|---|---|---|
| GSW145-AQM-T |  |
CI Ethernet 6-port 4-PHY 1G Ethernet Switch |
| GSW140A3MC | |
CI Ethernet DEVICE CON GSW140A3MC MRQFN105 SLMHB CO |
| GSW141A3MC | |
CI Ethernet DEVICE CON GSW141A3MC MRQFN105 SLMHA CO |
| GSW140A3LC | |
CI Ethernet DEVICE CON GSW140A3LC LGA105 SL007 CO |
| GSW141A3LC | |
CI Ethernet 1G Switch, 6 port, 4 PHYs, RGMII & SGMII |
| GSW120A3MC | |
CI Ethernet DEVICE CON GSW120A3MC MRQFN105 SLMHC CO |
| GSW120A3LC | |
CI Ethernet 1G Switch, 4 port, 2 PHYs, RGMII & SGMII |
