DFRobot 6V Electric Push Rod
DFRobot 6V Electric Push Rod comes with a thrust of up to 128N and a stroke of 10mm to 100mm when powered by 6V. This small but practical 6V electric push rod has an ultra-short stroke. It can be used for applications like access control, DIY lifting projects, electric telescopic poles, etc.
Features
- Ultra short stroke
- Large thrust
Specifications
- 6V Rated voltage
- 10mm stroke
- 128N thrust

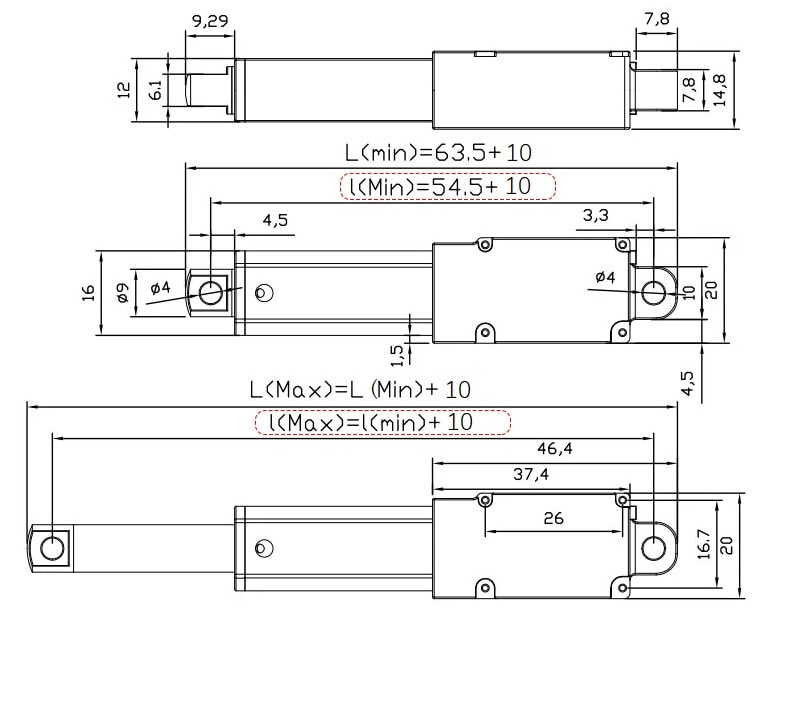

Dimension
.png "DFRobot 6V Electric Push Rod")
Additional Resource
View Results ( 4 ) Page
| Numéro de pièce | Description |
|---|---|
| FIT0803 | Solénoïdes et actionneurs 6V Electric Push Rod 10mm-128N |
| FIT0805 | Solénoïdes et actionneurs 6V Electric Push Rod 50mm-128N |
| FIT0806 | Solénoïdes et actionneurs 6V Electric Push Rod 100mm-128N |
| FIT0804 | Solénoïdes et actionneurs 6V Electric Push Rod Linear Actuator (30mm Stroke, 128N) |
