Cree LED J Series® 3030SWT LEDs

Cree LED J Series® 3030SWT LEDs are designed to deliver excellent value for both general and specialty lighting applications. These LEDs come in one of the industry’s most common LED package sizes (3mm x 3mm), making them highly compatible with existing designs. The J series 3030SWT LEDs are available in 3V and 6V configurations, and are drop-in compatible with popular models like the Samsung LM301D/LM302D and LM301Z+/LM302Z+. These LEDs share the same flux bins, chromaticity bins, kitting options, and mechanical dimensions, ensuring seamless integration. The J series 3030SWT LEDs are optimized for outdoor area lighting and indoor lighting for harsh environments, such as factories, warehouses, and other industrial locations.

Features

  • 3V and 6V configurations
  • Flux and chromaticity binned at 25°C
  • Industry-compatible size of 3mm x 3mm x 0.65mm
  • 2700K to 6500K ANSI CCT range
  • Available for 70, 80, and 90 CRI options
  • RoHS and REACH compliant

Applications

  • Street lights
  • Area and flood lighting
  • High-bay and low-bay fixtures (e.g., warehouses and factories)
  • Retail and commercial lighting
  • Parking lot and pathway lighting
  • Horticulture lighting
  • Architectural lighting
  • Emergency and security lighting
  • Industrial lighting

Mechanical Dimensions

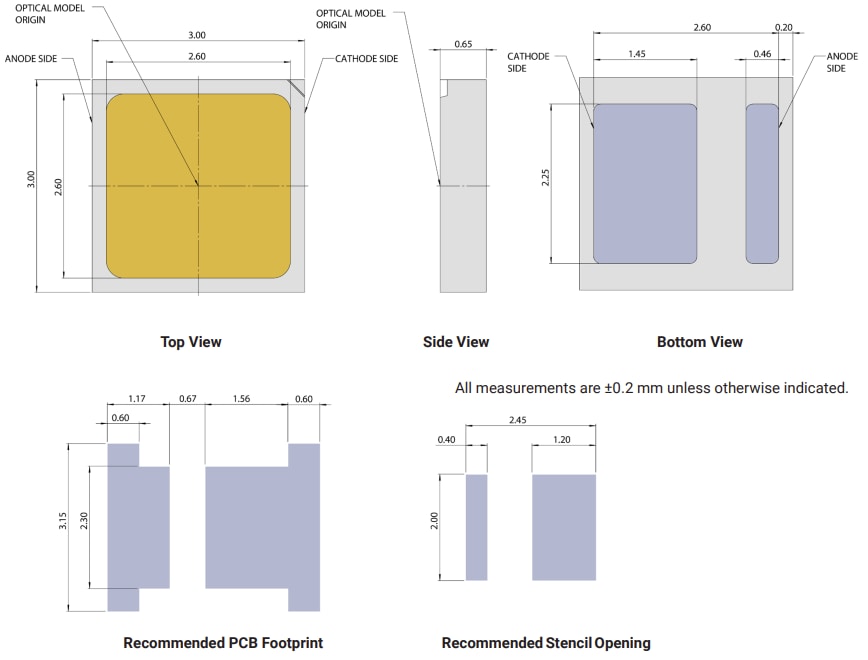

Mechanical Drawing - Cree LED J Series® 3030SWT LEDs
View Results ( 168 ) Page
Numéro de pièce Fiche technique Indice de rendu de couleur (CRI) Flux lumineux / Flux énergétique Couleur d'éclairage Température de longueur d'onde/couleur Angle de visualisation If - Courant direct Vf - Tension directe Dimensions de la lentille Profil de la lentille Longueur Largeur Hauteur Sensibles à l’humidité Style de montage RoHS - Mouser
JB3030SWT-G-H30NA0000-SZ000001 JB3030SWT-G-H30NA0000-SZ000001 Fiche technique 80 34 lm Warm White 3000 K 120 deg 65 mA 3 V 2.6 mm x 2.6 mm Square 3 mm 3 mm 0.65 mm Yes SMD/SMT Y
JK3030SWT-G-U27GB0000-SZ000001 JK3030SWT-G-U27GB0000-SZ000001 Fiche technique 90 113 lm Warm White 2700 K 120 deg 65 mA 6 V 2.6 mm x 2.6 mm Square 3 mm 3 mm 0.65 mm Yes SMD/SMT Y
JK3030SWT-G-B40NB0000-SZ000001 JK3030SWT-G-B40NB0000-SZ000001 Fiche technique 70 163 lm White 4000 K 120 deg 65 mA 6 V 2.6 mm x 2.6 mm Square 3 mm 3 mm 0.65 mm Yes SMD/SMT Y
JK3030SWT-G-U35NB0000-SZ000001 JK3030SWT-G-U35NB0000-SZ000001 Fiche technique 90 122 lm Neutral White 3500 K 120 deg 65 mA 6 V 2.6 mm x 2.6 mm Square 3 mm 3 mm 0.65 mm Yes SMD/SMT Y
JK3030SWT-G-U40NB0000-SZ000001 JK3030SWT-G-U40NB0000-SZ000001 Fiche technique 90 125 lm White 4000 K 120 deg 65 mA 6 V 2.6 mm x 2.6 mm Square 3 mm 3 mm 0.65 mm Yes SMD/SMT Y
JK3030SWT-G-H35NB0000-SZ000001 JK3030SWT-G-H35NB0000-SZ000001 Fiche technique 80 143 lm Neutral White 3500 K 120 deg 65 mA 6 V 2.6 mm x 2.6 mm Square 3 mm 3 mm 0.65 mm Yes SMD/SMT Y
JK3030SWT-G-H40NB0000-SZ000001 JK3030SWT-G-H40NB0000-SZ000001 Fiche technique 80 146 lm White 4000 K 120 deg 65 mA 6 V 2.6 mm x 2.6 mm Square 3 mm 3 mm 0.65 mm Yes SMD/SMT Y
JK3030SWT-J-B40NB0000-SZ000001 JK3030SWT-J-B40NB0000-SZ000001 Fiche technique 70 148 lm White 4000 K 120 deg 65 mA 6 V 2.6 mm x 2.6 mm Square 3 mm 3 mm 0.65 mm Yes SMD/SMT Y
JK3030SWT-J-H35NB0000-SZ000001 JK3030SWT-J-H35NB0000-SZ000001 Fiche technique 80 138 lm Neutral White 3500 K 120 deg 65 mA 6 V 2.6 mm x 2.6 mm Square 3 mm 3 mm 0.65 mm Yes SMD/SMT Y
JK3030SWT-J-H40NB0000-SZ000001 JK3030SWT-J-H40NB0000-SZ000001 Fiche technique 80 138 lm White 4000 K 120 deg 65 mA 6 V 2.6 mm x 2.6 mm Square 3 mm 3 mm 0.65 mm Yes SMD/SMT Y
Publié le: 2025-09-15 | Mis à jour le: 2025-09-23
