Cree LED CLR6A-TKW SMD LEDs

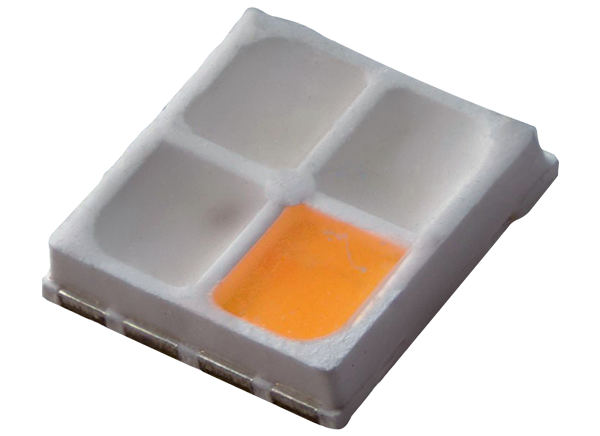

Cree LED CLR6A-TKW SMD LEDs are packaged in an industry-standard PLCC8 package. The CLR6A-TKW are high-performance 4 color SMT LEDs designed to work in a wide range of applications. A wide viewing angle and high brightness make these LEDs suitable for signage applications.
Features
- Size 3.8mm x 3.8mm x 0.8mm
- Dominant wavelength/CCT
- Red (619 - 624nm)
- Green (520 - 535nm)
- Blue (460 - 475nm)
- White (3000K/4000K/5000K/5700K)
- Luminous flux (lm)
- Red (6.3 - 12.3)
- Green (10.7 - 18.1)
- Blue (2.9 - 4.8)
- White (8.2 - 18.1)
- Moisture sensitivity level 5a
- Lead-free
- RoHS compliant
Applications
- Architecture lighting
- Decorative lighting
- Amusement
