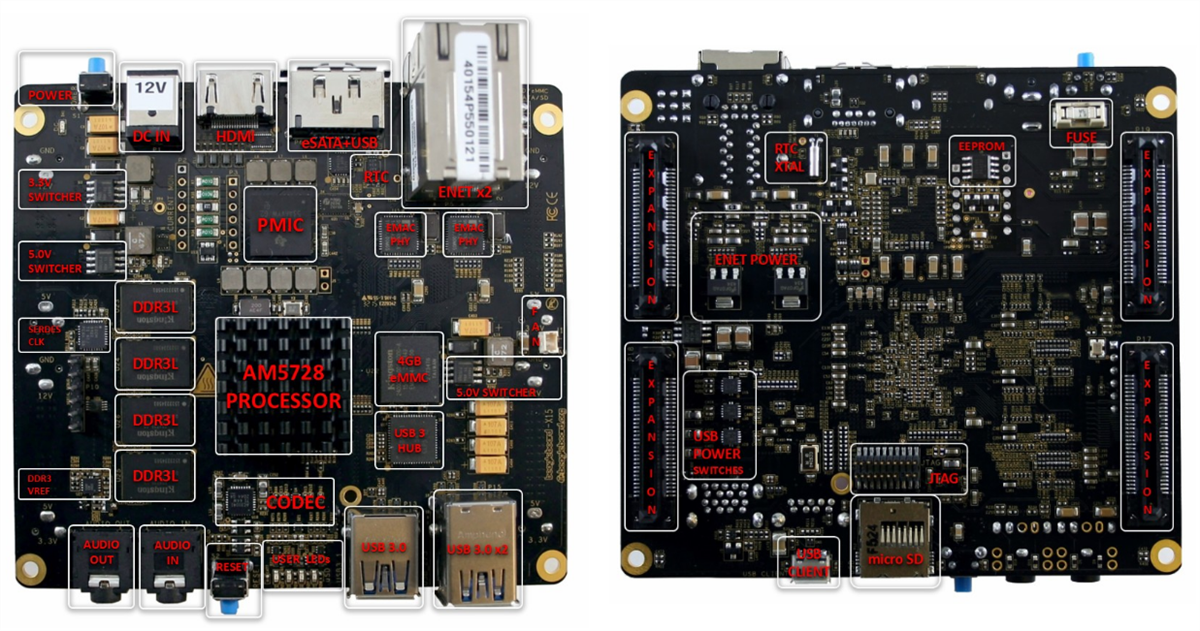

BeagleBoard X15 Single Board Computer
BeagleBoard X15 Single Board Computer features a 4" x 4.2" size and is a member of the BeagleBoard family. The board provides a core tailored for every computing task and a high-speed interface for connectivity. The X15 gives algorithms room to stretch. BeagleBoard X15 Single Board Computer is compatible with Debian, Android, and Ubuntu software. The X15 includes 2 x Arm® Cortex®-M4 microcontrollers (MCUs), 2D/3D graphics and video accelerators (GPUs), and 4GB 8-bit eMMC onboard flash storage.

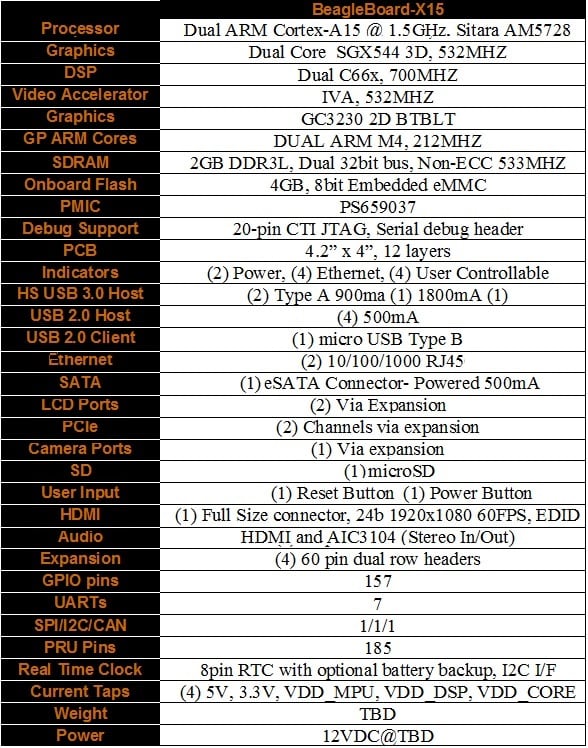

Features
- Member of the BeagleBoard family
- 4" x 4.2" board size
- Provides a core tailored for every computing task
- TI AM5728 processor 2 x 1.5GHz Arm Cortex-A15
- 2 x 700MHz C66 digital signal processors (DSPs)
- 2 x Arm Cortex-M4 MCUs
- 4 x 32-bit programmable real-time units (PRUs)
- Software compatibility
- Debian
- Android
- Ubuntu
- Cloud9 IDE on Node.js
- Connectivity
- 2 x Gigabit Ethernet
- 3 x SuperSpeed USB 3.0 host
- High-speed USB 2.0 client
- eSATA (500mA)
- Full-size HDMI video output
- microSD card slot
- Stereo audio in and out
- 4 x 60-pin headers with PCIe, LCD, mSATA, and more
- 2GB DDR3 RAM
- 4GB 8-bit eMMC onboard flash storage
- 2D/3D GPUs
