3M Connectors Mini-Clamp 2mm Board Mount Connectors

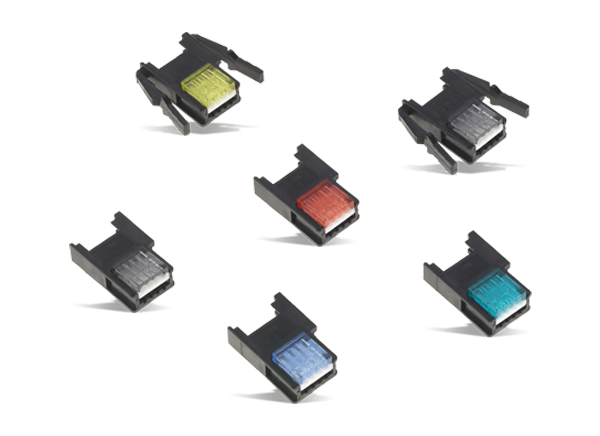

3M Mini-Clamp 2mm Board Mount Connectors provide easy, labor-saving, and reliable IDC termination with no special wire preparation. The connectors are designed to provide connection reliability and cost performance in I/O applications commonly found in a wide range of sensor control systems, including factory automation and industrial controls. The connectors feature a semi-transparent cover, color-coded covers for proper wire usage, wire alignment, and retention built into the cover.

Features

Thin and flexible design

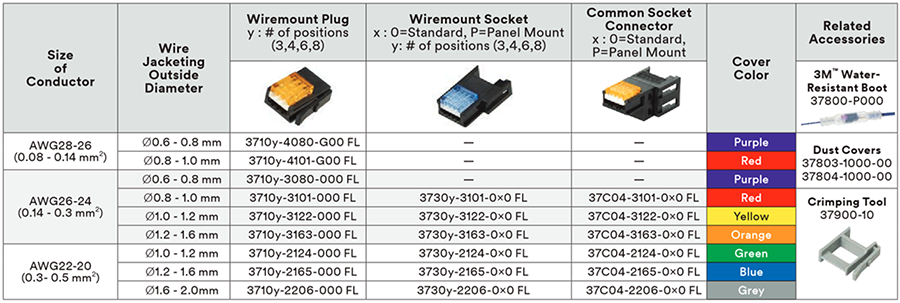

Accepts multiple wire diameters 0.8mm to 2.0mm (.031" to .079")/ conductor sizes (20AWG to 26AWG / 0.14mm2 to 0.5mm2)
Integrated wire retention cover design to retain the wires while terminating to the IDC
Mating latches provide a reliable interconnection in demanding applications

Compact design saves board space
Up to 300 mating cycles
3A current rating

Applications

Factory automation and industrial controls
Semiconductor / LCD manufacturing machines
Medical
Packaging systems
Conveyor systems
Motion test and measurement systems
Traffic light and control systems

Elevators / Lift systems
Elevator controls
LED lighting
Pressure sensors (Air, Water)
Base press control electronics
Food and packaging industries
Automotive and metal industries

Specifications

3, 4, or 8 position
Single row with 2.54mm spacing and 2mm pitch
Pin (male) or socket (female) contact gender options
Straight mounting angle
Electrical
- 3.0A current rating
- 32V voltage rating
- 1000V_RMS withstanding voltage at sea level
Temperature ratings
- -20°C to +85°C ambient at 1.0A maximum
- -20°C to +75°C ambient at 2.0A maximum
- -20°C to +60°C ambient at 3.0A maximum
- +260°C maximum SMT reflow
- +390°C maximum for soldering irons

Mounting types
- Cable mount/free hanging
- PCB mount
- Panel mount
Termination styles
- IDC
- Solder pin
Materials
- Gold-plated copper alloy contacts
- Plating
  - 2.54µm (100µ") minimum nickel underplating
  - 0.2µm (8µ") minimum gold wiping area with lubricant
